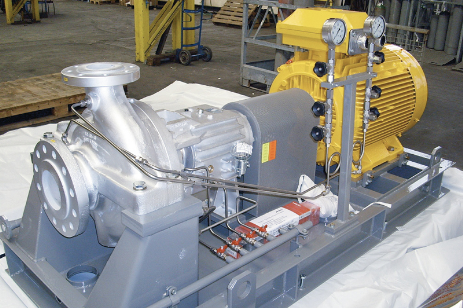

KRH, OH2

Operating data:
Q= 1.000 m3/h
H= 320 m
P= 55/90 bar
T= +450 °C

Design features and properties:
  • Pump meets all requirements of API-610, Typ OH2, horizontal, single-stage, radial-split, heavy-duty design
  • Axial suction nozzle, radial discharge nozzle
  • Centerline-supported
  • Casing > NW 80 of double-volute design
  • Reduction of axial forces
  • Low vibration – long service life
  • Back-pull-out version in connection with demountable coupling allows simple maintenance, volute casing and motor remain in initial position
  • Seal area acc. to API 610/682, suitable for a variety of seals
  • Standard version
  • Flanges according to ASME B16.5 for class 300 or 600 lbs
  • Exchangeable wear and guide rings enable easy maintenance and cost reduction
  • Dynamically ballanced impellers guarantee very smooth running
  • Solid shaft design meets all requirements of API-610

Materials:
  • Grey cast iron
  • Ductile cast iron, ADI materials
  • Cast steel
  • 12 % chromium steel
  • Austenitic steel
  • Special alloys
