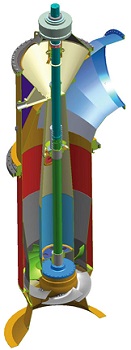

Vertical Line Shaft Pumps

Flow rate up to: 70,000 m³/h
Head up to:         80 m
Power up to:      10,000 kW

Design:
Pull-out or non pull-out

Special benefits:
Option with hydraulically adjustable impeller blades: The hydraulic impeller blade adjustment mechanism allows the impeller angle to be varied continuously during operation. Thus, the operator can react promptly to changes in flow rate and head.

Materials:
Cast iron, non-alloy and low-alloy steels, duplex and super duplex

Shaft seal:
Gland packing, mechanical seal

Impeller design:
Radial, axial, and semi-axial impeller, optionally adjustable angle impeller blades or hydraulically adjustable impeller blades

Applications:
Thermal power, water, other industries
