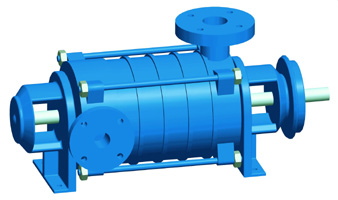

The MP high pressure multi-stage pump is entirely manufactured from castings. The rotor package is locked at both ends of the pump shaft, which ensures an optimal distribution of the radial forces on the rotor package. The pump is robustly developed and built for large lifespan.
Key features:
Flow rates up to: 400 m³/hr
Heads up to: 800 m
Casing pressure up to: 100 Bar
Temperature: -20ºC tot +160ºC
According to: Horizontal / vertical setting
Material:
The following materials may be used: Cast iron (GG20), duplex (1.4408). Special materials, such as bronze for example, are available on request.
Impeller:
Multi-stage closed impellers for clean liquids, placed in circulation cover.
Shaft Seal:
The pump shaft seal is made with a single mechanical seal following DIN24960 or double mechanical seal (tandem arrangement).The composition of materials are able to put together by customer specifications.A cartridge seal is also possible.
Motor:
Standard B3 IEC engine can be supplied from any brand. ATEX engines are also possible.
Application:
These pumps can be found in different processes, where high pressures are desired.
