Düchting MCC Serie

Horizontal single-stage centrifugal pump in back pullout design.
  • Pumping of abrasive and corrosive liquids
  • All components which are in contact with the liquid are made of SICcast®
  • Suction flange: Axial
  • Discharge flange: Top (Tangential)
  • Closed impeller with three-dimensionally curved vanes
  • Impeller is key driven; reverse rotation (e.g. back-flushing) is possible
  • Re-adjustable inclined gap between impeller and wear plate to optimize the efficiency and differential pressure after longer operation
  • Single acting, metal free cartridge mechanical seal DÜTEC®-Cwith springs located outside of the liquid
  • Durable, oil-lubricated roller bearings
  • Back pullout design (the complete rotating equipment can be disassembled while the casing remains on its position)
  • In many applications the wear life of SICcast® greetly exceeds conventional materials
  • The patented design allows the production of extremely large pumps at low costs

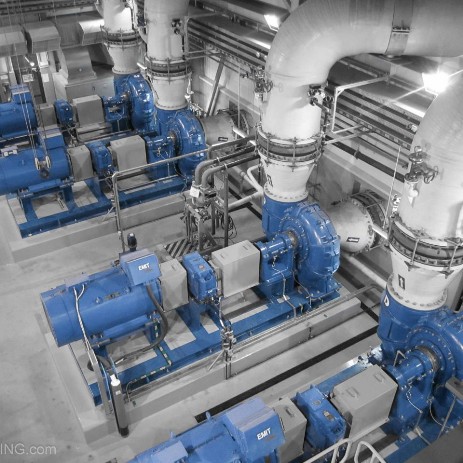

  • Currently, the most advanced and most durable technology for FGD absorber recirculation pumps

Pump Size:         16" to 40" (DN 400 to DN 1000)
max. Pressure:  87 PSI (6 bar)
max. Flow:          88000 gpm (20000 m³/h)
Total head:         up to 130 ft (40 m)Rotating speed:to 1200 rpm

Spiral casing:  SICcast® EN-GJS-400-15 (GGG40)
Impeller: SICcast®
Wear plate:SICcast®
Shaft: 1.0503 (C45)
Shaft sleeve: 1.4301 (1.4462)
Mechanical seal:  Silicon carbide (SiC)

Pumping abrasive and / or corrosive media.
  • Flue gas desulfurization
  • Incinerators
  • Water treatment
  • Seawater desalination
