Habermann HPK  Slurry Pump

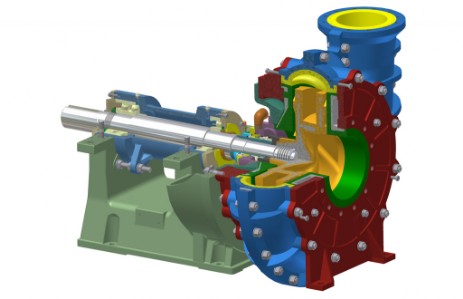

The armoured pump type HPK with HAWIFLEX lining, are used to pump abrasive / corrosive liquids with a maximum particle size up to 5 mm.

HAWIFLEX® types:
  • H2707-00 70-80 Shore A, abrasive and corrosive resistant to 75 ° C, pH 5-9H (green)
  • H3807-01 88 Shore A, abrasive and corrosive resistant to 75 ° C, pH 0-14 (yellow)
  • H3911-04 88 Shore A, abrasive and corrosive resistant to 95 ° C, pH 0-14 (blue)

Rubber lining types:
  • G2201 60-70 Shore A, abrasively and corrosively resistant to 130 ° C
  • G2235 50-65 Shore A, abrasively and corrosively resistant to 85 ° C and in certain values chemically resistant

Key features:
Flow rate:                                    0,5 - 3000 m3/hr
Heads up to:                               70 mvk
NPSH up to:                                8 mwk
Max. temperature:                   130°C
Max. particle size:                     5 mm
Suction pressure:                      DN32 to DN500
Pressure class:                           PN10, PN16 en PN25

Downloads:
